Tern GSD R14 (Gen 2)
From $7,499.00$6,699.00
Tern Size Guide
Below is a recommended size guide from Tern. If you are close on a size please reach out to us to get some help. We are always happy to assist.
| Model | Size Range |
|---|---|
| GSD | 4'11"-6'5" |
| HSD | 4'11"-6'5" |
| NBD | 4'10"-6'5" |
| Quick Haul | 4'11"-6'5" |
| Vektron | 4'10"-6'5" |
Tern simplifies its sizing options with a “one size fits most” mindset for all of their bikes and eBikes.
All Tern eBikes can fit rider heights ranging from 4’11” to 6’5″. Shorter riders with longer inseams might be able to fit on Tern bikes, and with a couple of component upgrades, these eBikes can be made for riders taller than 6’5″. Some adaptations like a shorter seatpost or longer stem could be added if you want to be more comfortable at the extremes of the scale.
The GSD
The HSD
The Vektron
The Quick Haul
The NBD
More details on Tern Sizing:
Adjusting a Tern to fit
- Tested to the highest standards
- Easy to Share - Fits a wide range of riders
- Grow with your life - Accessories to fit any needs

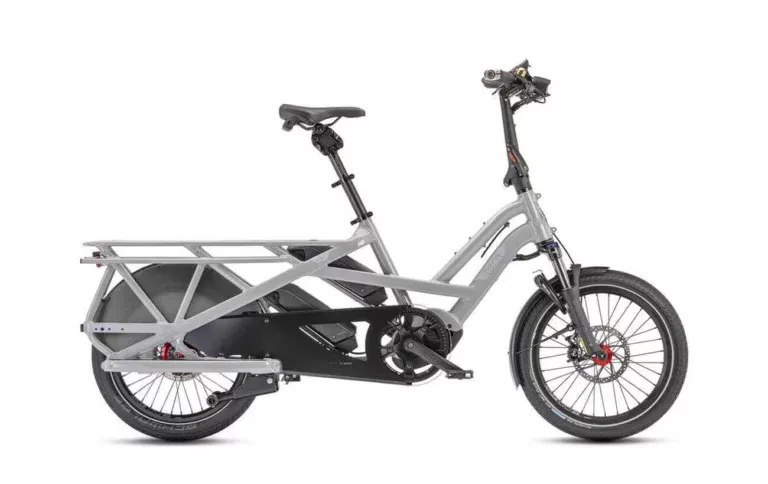

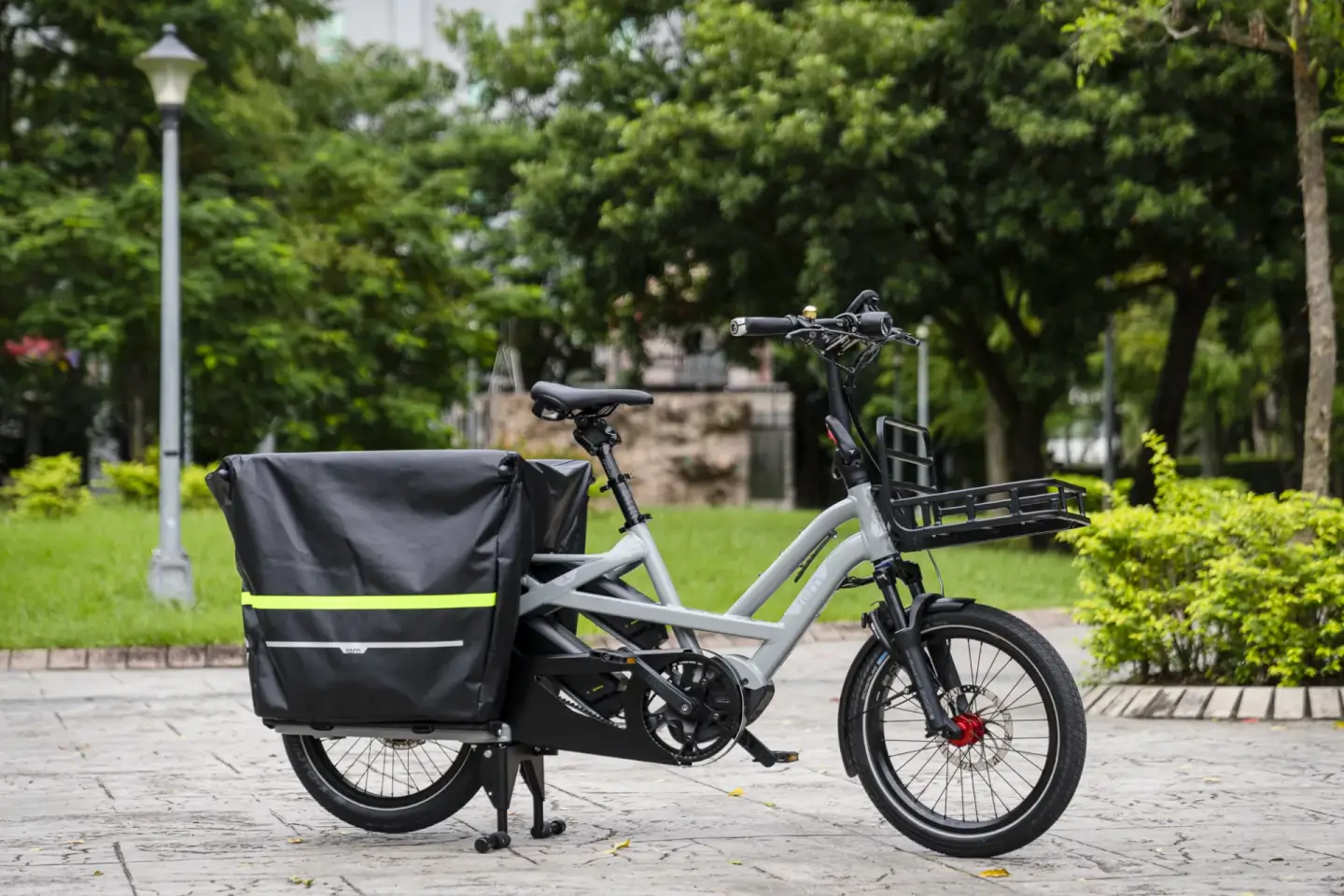

Experience the Tern GSD R14, a compact yet powerful electric cargo bike capable of handling an impressive 200 kg (440 lbs), perfect for two kids and your groceries, all in a regular bike size. Boasting a Bosch® engine and dual-battery system for an impressive 206 km (128 mi) range, its performance is matched by comfort, fitting riders from 4’11” to 6’5” and sporting an extra-cushy Cane Creek® suspension seatpost. The Tern GSD R14 is more than a bike, it’s a versatile, all-in-one transportation solution, redefining the way you move.
GSD R14 Overview:
- 200 kg (440 lb) Maximum Gross Vehicle Weight

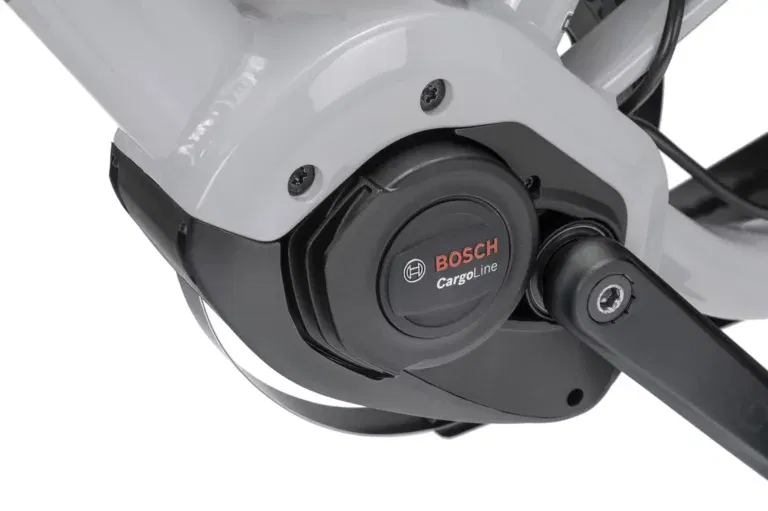

- Bosch® Cargo Line Motor provides up to 85 Nm of torque and 400% support

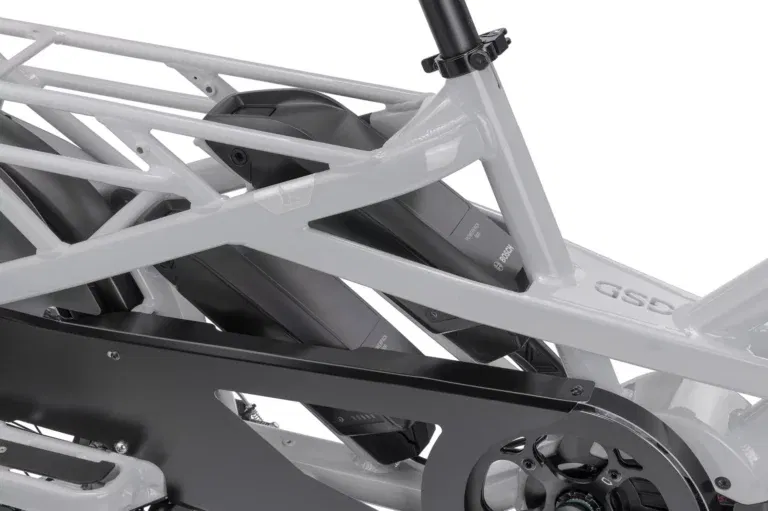

- Bosch dual-battery system (500/1000 Wh) for a range of up to 206 km (128 mi)

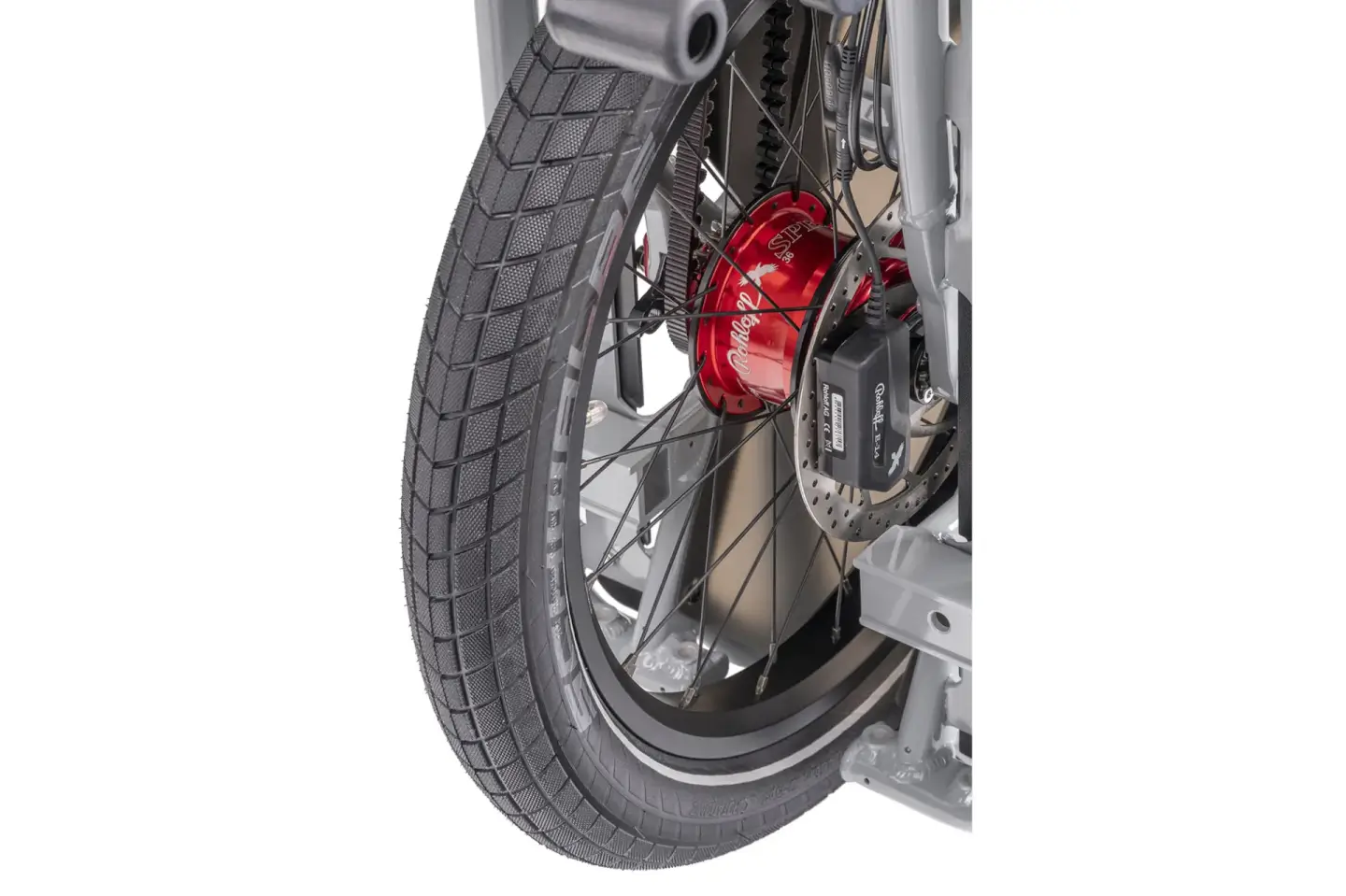

- Rohloff® Speedhub features a 526% gear range, electronic shifting, and automatic downshifting

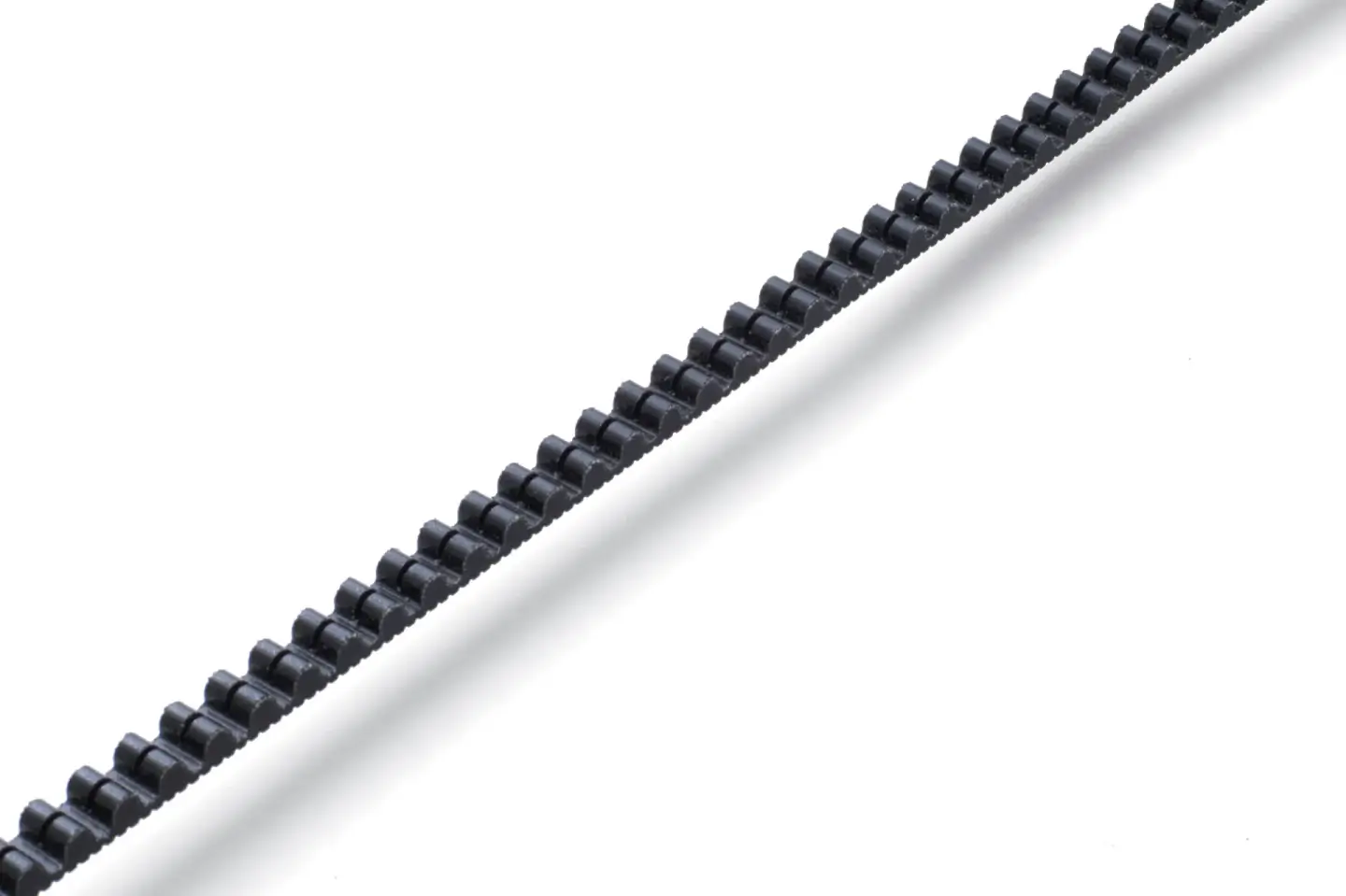

- Gates® CDX Belt Drive is silent, smooth, and virtually maintenance-free
- Adjustable cockpit comfortably fits riders 150 – 195 cm (4’11” – 6’5”)

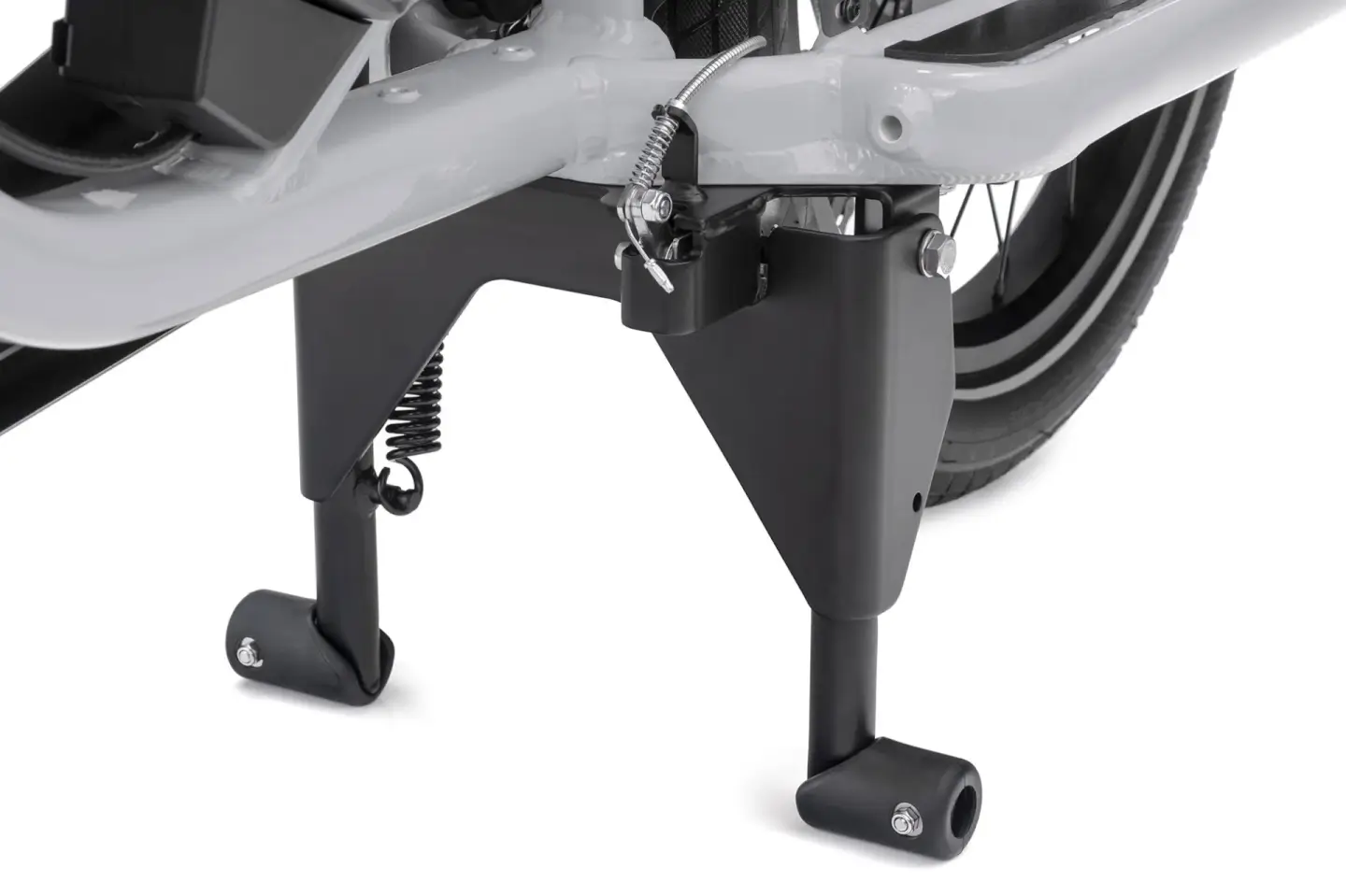

- Super tough Atlas Lockstand™ auto-locks when engaged—just press a button on the handlebars to unlock

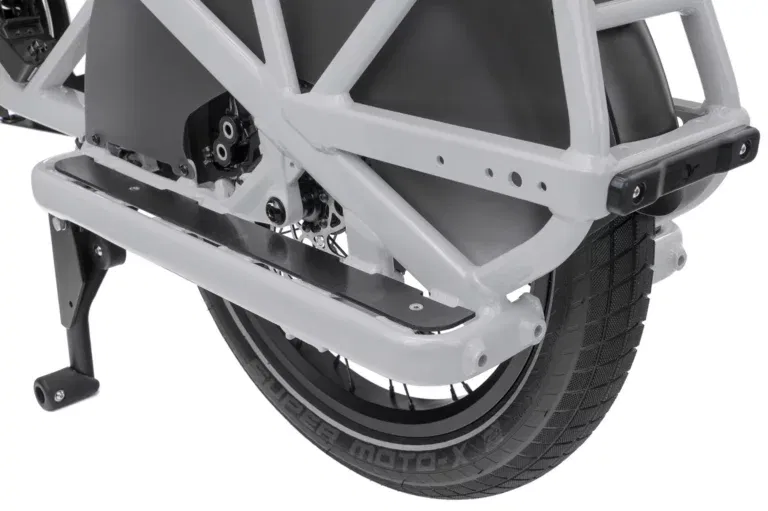

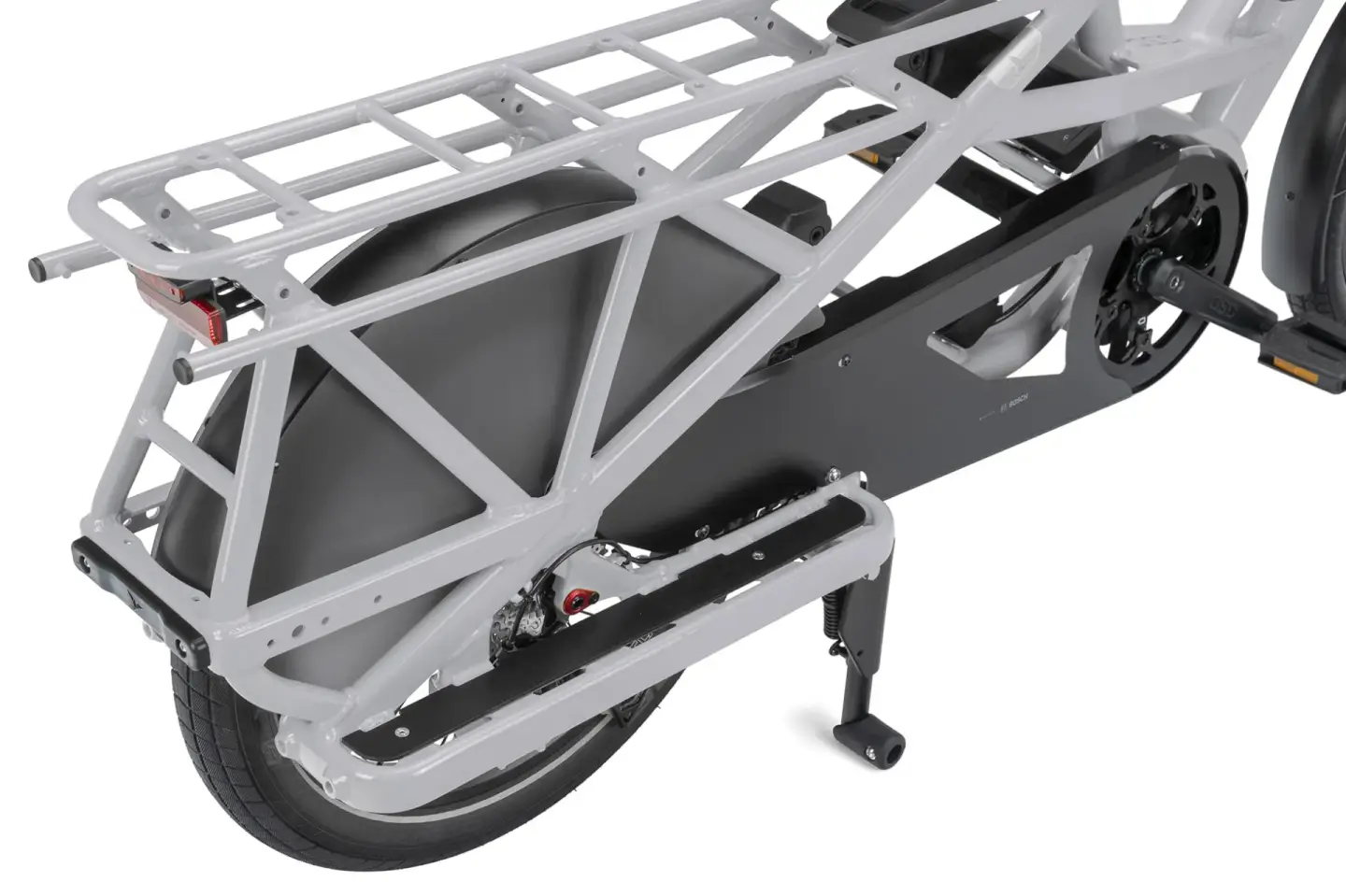

- Heavy-duty frame-integrated rear rack and integrated lower decks
- Cane Creek® Thudbuster ST Suspension Seatpost for an extra-cushy ride

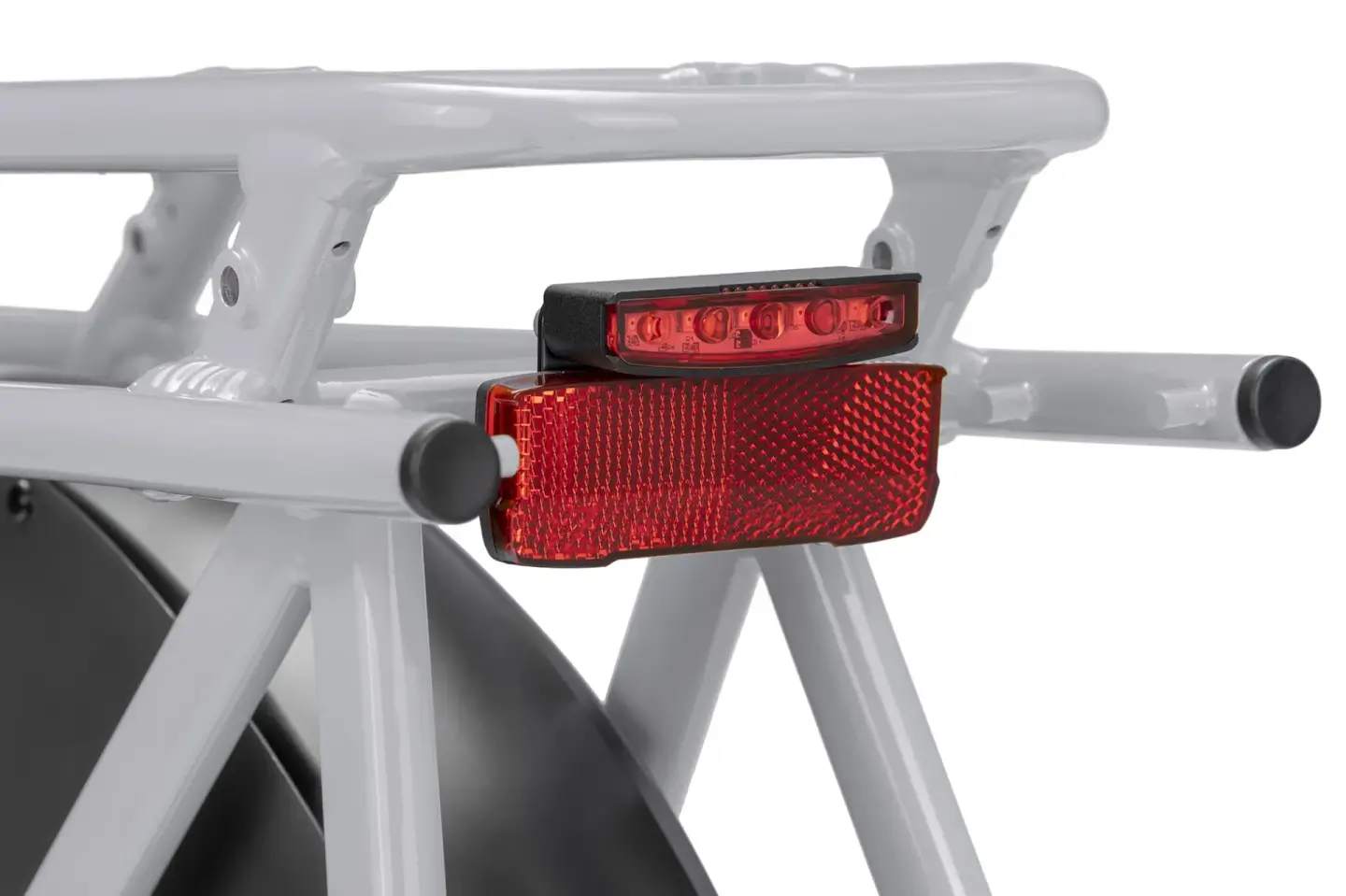

- Always-on RearStop™ Brake Light helps you safely signal stops

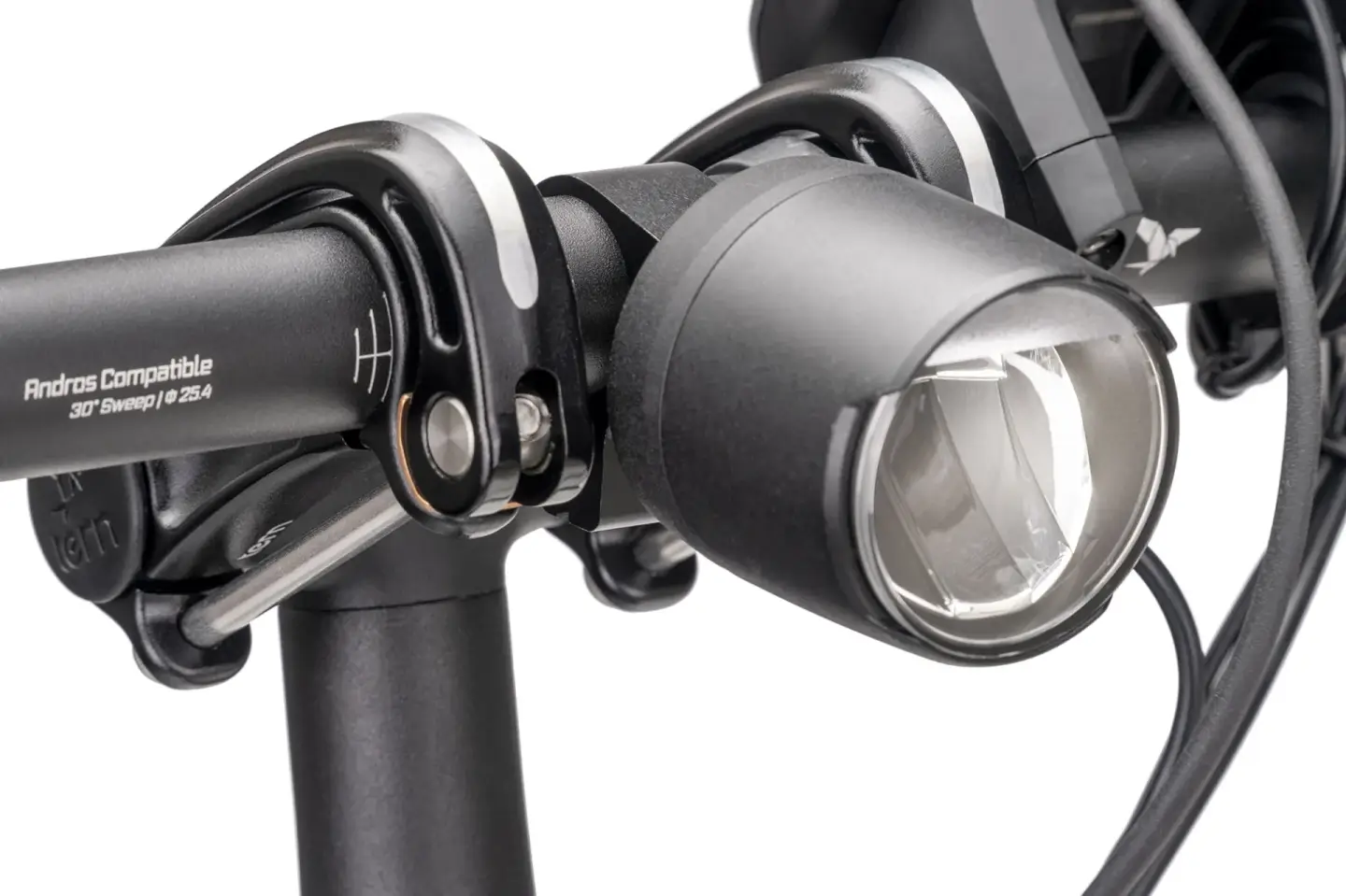

- Ultra-bright Ignis™ Headlight ensures 24/7 visibility, no matter the weather

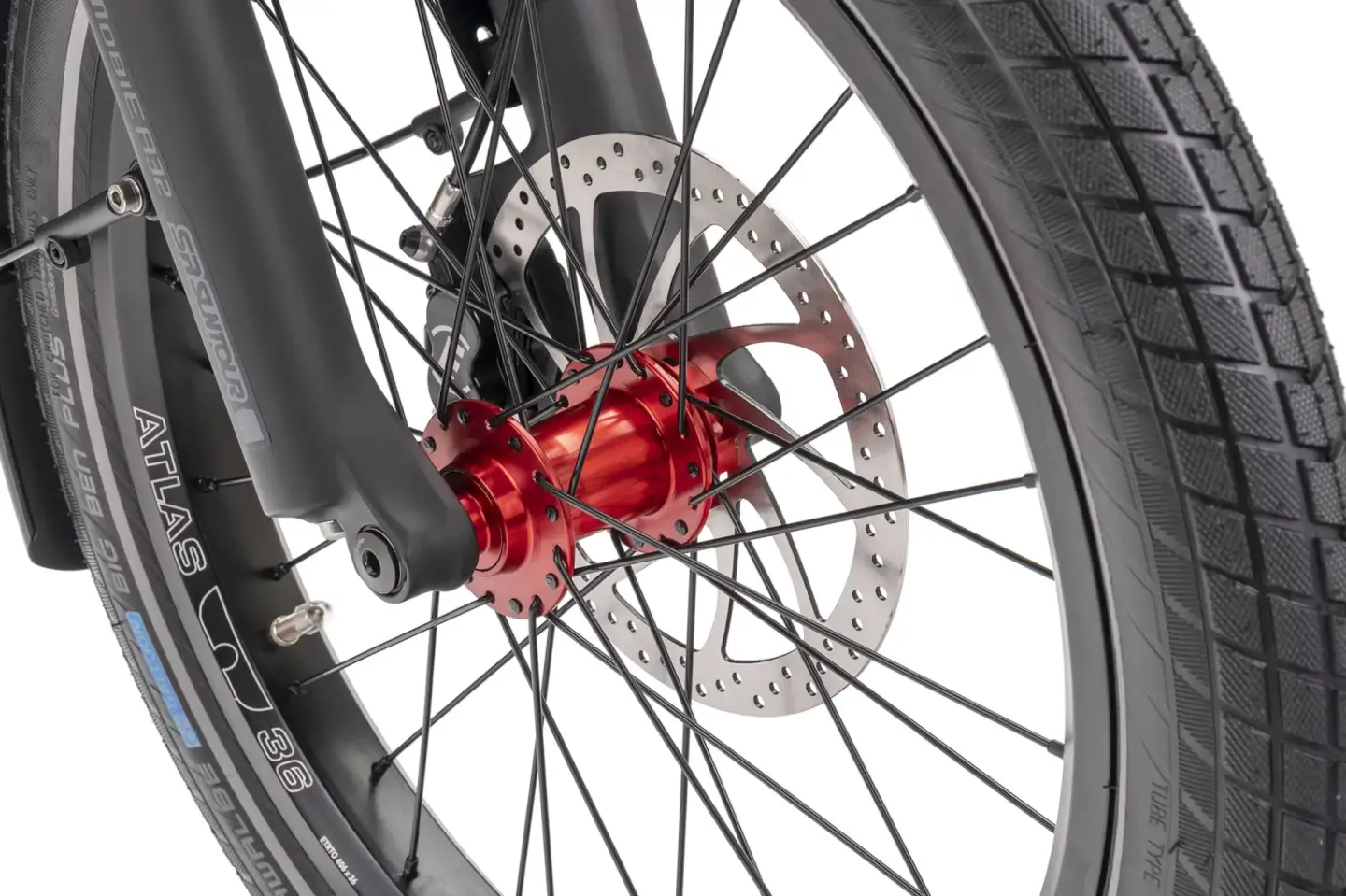

- Powerful and responsive Magura® MT5 eSTOP 4-piston hydraulic disc brakes

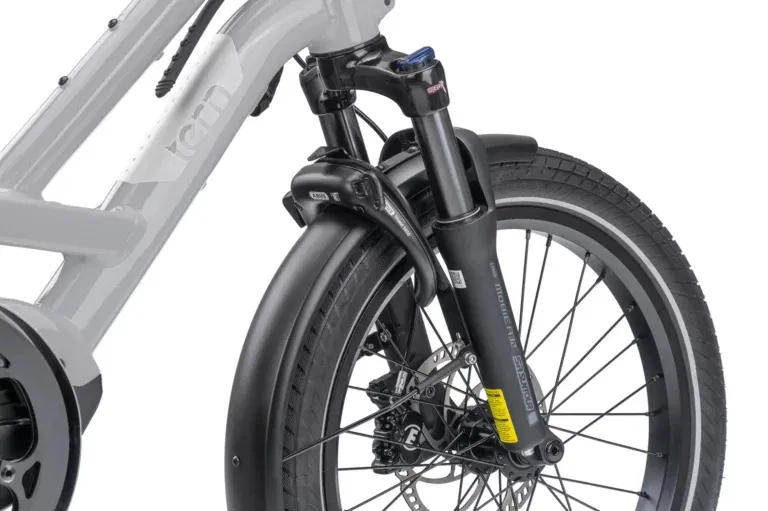

- Integrated Abus® Wheel Lock, keyed-alike with the battery

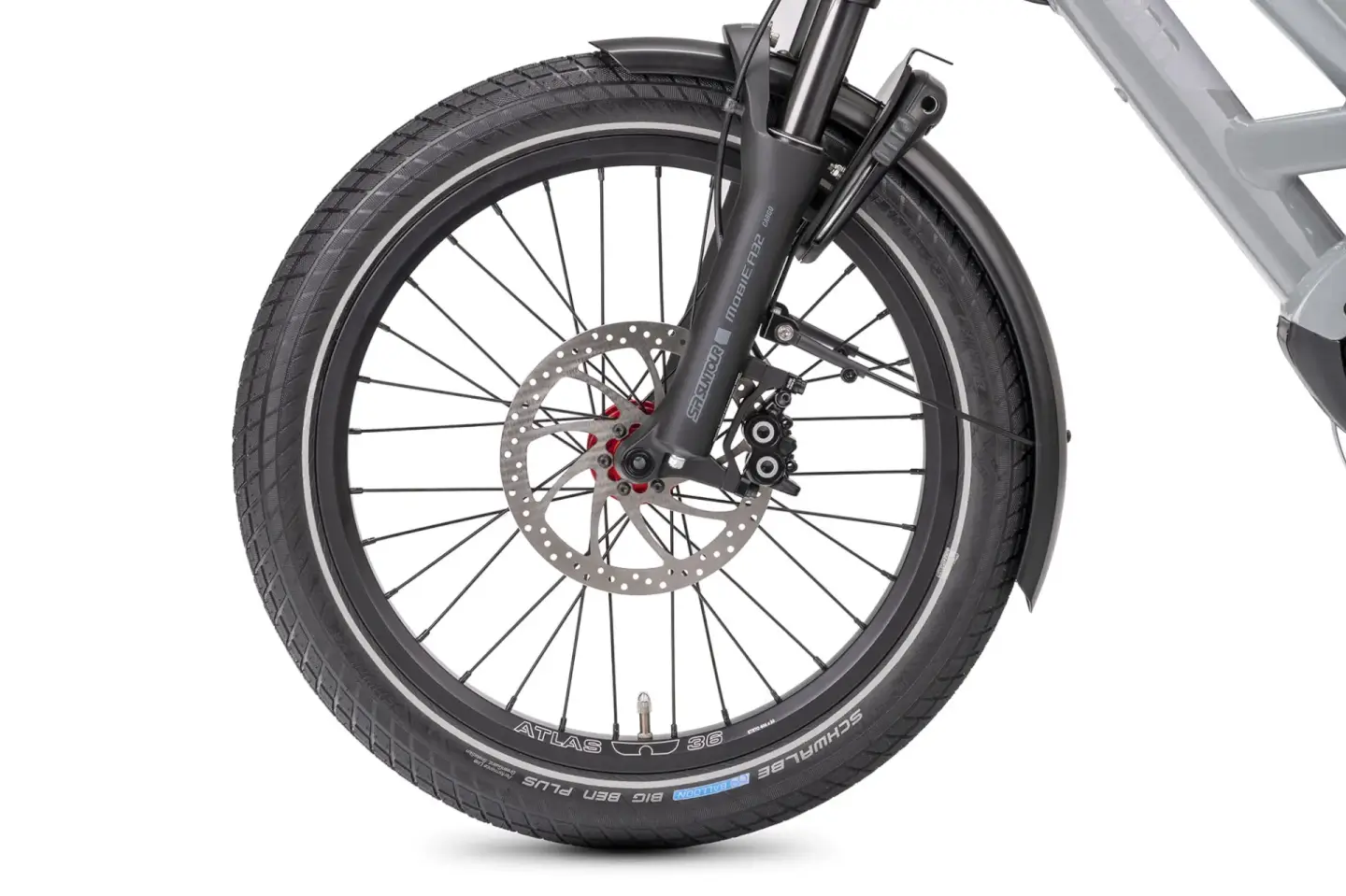

- Upgraded Atlas Wheels™ with custom CNC machined hubs for extra strength and durability
- Wide range of cargo- and passenger-carrying accessories
- Fits two Thule® Yepp Maxi seats, no adapters needed
GSD highlights
- Best-in-class hauling capacity, rated to a maximum gross vehicle weight of 210 kg (463 lb) with a rear rack load capacity of 100 kg (220 lb)
- Powerful Bosch Cargo Line motor provides up to 85 Nm of torque and 400% support
- Magura® 4-piston hydraulic disc brakes deliver precise and responsive stopping power
- Robust, locking dual-leg kickstand with remote unlock and integrated foot extensions for maximum loading stability
- Easy-sharing cockpit adjusts without tools to fit riders 150 – 200 cm (4’11” – 6’7″) tall and weighing up to 130 kg (287 lb)
- UL 2849-certified e-bike system & third-party tested to meet German cargo bike standard DIN 79010 for superior safety and reliability
| Color | |
|---|---|
| Wheel Size | |
| Weight | |
| Frame Size | |
| Frame | Tern GSD, 6061-AL, patented MultiTruss design, EFBE Tri-Test approved: 200 kg |
| Fork | |
| Grips | |
| Stem | Tern Andros, Adjustable, Forged Construction, Patented Technology |
| Headset | Tern Flux Pro Taper, 1.5”, Angular contact bearings, Physis integrated |
| Handlebar | |
| Saddle | |
| Seatpost | |
| Front Brake | Magura MT5, 4-piston hydraulic disc, 180 mm rotor, Sport pads |
| Rear Brake | Magura MT5, 4-piston hydraulic disc, 180 mm rotor, Sport pads |
| Brake Levers | |
| Front Hub | Tern Atlas, Boost Thru-Axle, Cargo-optimized design, sealed cartridge bearing |
| Rear Hub | |
| Spokes | |
| Rims | |
| Tires | |
| Shifter | |
| Crankset | |
| Cassette | |
| Bottom Bracket | |
| Chain | |
| Pedals | |
| Motor | |
| Battery | |
| Display | |
| Range | 63 to 128 miles |
| Bell | |
| Kickstand | |
| Front Light | |
| Tail Light | |
| Mudguards | |
| Rack | |
| Rider's Weight | |
| Chain Guard | |
| Type | Gen 2, Gen 3 |
