Bosch eBike System
Drive unit, rechargeable battery and on-board computer: Each of the three products features the highest technical quality, together ensuring maximum riding enjoyment. The individual components of the Bosch eBike system harmonize like a well-drilled team. The result is a perfectly coordinated combination for maximum efficiency, comfort and riding enjoyment.
Batteries
Depending on the configuration
Bosch PowerPack 400 frame battery
Whether visiting friends, enjoying a country bike ride in the fresh air or doing some errands with the eBike: PowerPack 400 delivers the energy required. The light lithium-ion battery is easy to install or remove or can simply be charged using the charging socket on the eBike. Its long life, ergonomic design and ease of handling means the PowerPack 400 provides reliable support that is strong on performance. The PowerPack 400 is included as a frame or rack battery for all product lines.
Bosch PowerPack 500 frame battery
The powerful lithium-ion battery attached to the framehas an energy reserve of 500 Wh. High reliability and a service life of 800 to 1,000 charging cycles make it a strong companion over hill and dale. It can be charged directly on the E-Bike or removed from the frame in a single step. It takes 4.5 hours to charge from a fully discharged state. So with the PowerPack 500 you are perfectly equipped for any trip.
Depending on the model
Bosch Performance Sport Gen 3
The new Bosch Performance Sport ensures riding enjoyment, particularly during athletic riding at high cadences. The drive weighs only 7 lbs. and accelerates smoothly over 20 mph, with a maximum speed of 28 mph – for care-free riding and that unique Bosch riding sensation.
Propel’s video about Bosch performance sport motor
Bosch Performance Line
The versatile and virtually silent Performance Line is now also part of the smart system. Take advantage of the features on offer, stay active and rediscover the world around you. Stay on trend with over-the-air updates in the eBike Flow app. Enjoy the ride with the new Auto riding mode. Lending powerful support with a natural riding sensation, the drive unit keeps you safe with features such as the new Bosch eBike ABS.
Displays
Depending on the configuration
Purion Display
Design meets functionality: Purion is the minimalist on-board computer for everyone wishing to have a neat look on the handlebar, be it for use in the city or the countryside. You get all important information conveniently at the touch of a button during the ride, with both hands remaining on the handlebar. Five different riding modes give you the correct support in every situation.

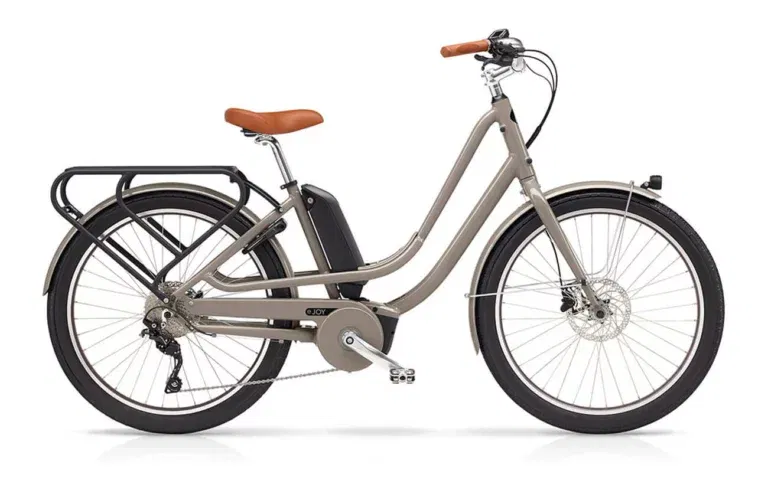

EJOY. CUTE. SMART. FEARLESS.
Inspired by the lines of vintage Italian scooters and classic German cars, the eJoy combines the timeless language of vehicle design of the past with modern technology and our Etility® design. The result is an ebike that’s both charming and capable.
The powerful and efficient Bosch Active Plus/Bosch Performance electric motor pairs with a sturdy oversized rear rack and an optional frame-mounted front tray to give you serious load capacity. Its comfortable and upright, yet powerful riding position makes riding easy and fun, while the extra-strong aluminum frame with its low step through design gives you a smooth ride with extra control. The eJoy is a true two-wheeled electrical vehicle that allows you to leave your car behind, whether you’re running errands or on a scenic joyride.
EJOY. THE ETILITY BIKE.
The eJoy, with Etility® Design, is many bikes in one. Its rigid frame makes it sturdy, while its adaptable design gives it extra flexibility. It’s compatible with most aftermarket accessories and can handle almost twice the cargo load of a typical bike. More versatility, more possibilities, more reasons to ride.
Sturdy rear rack with 85lbs/40kg max load.

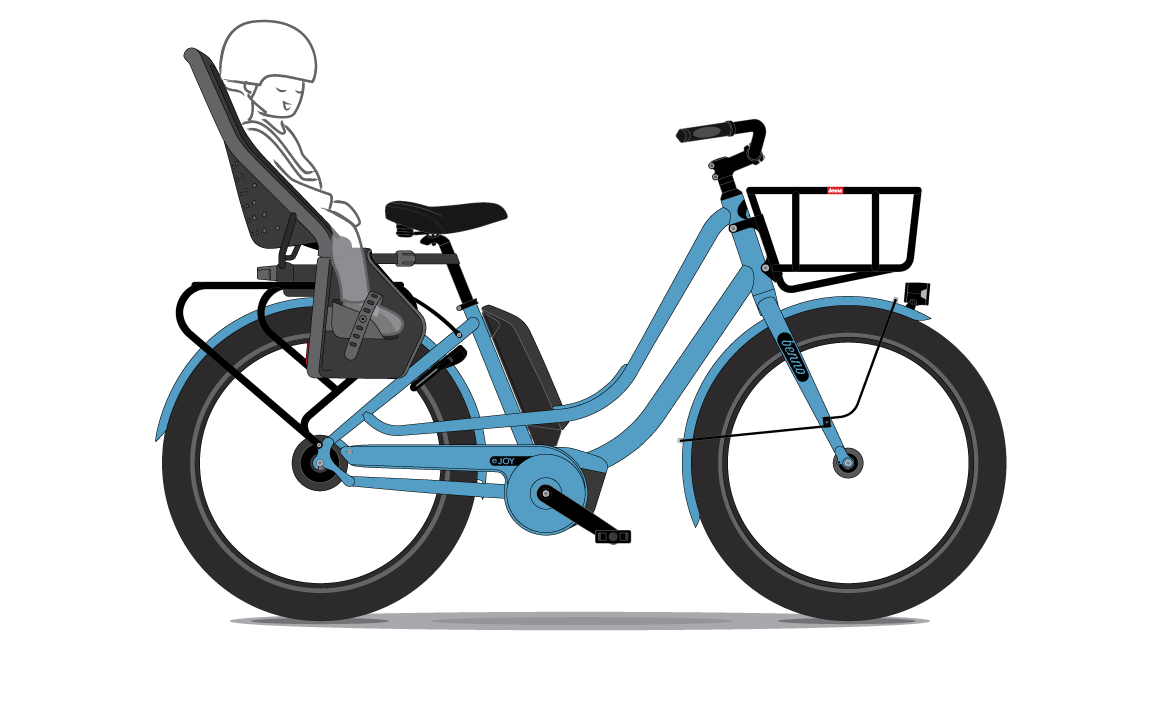

Compatible with Yepp® and other popular child seats.

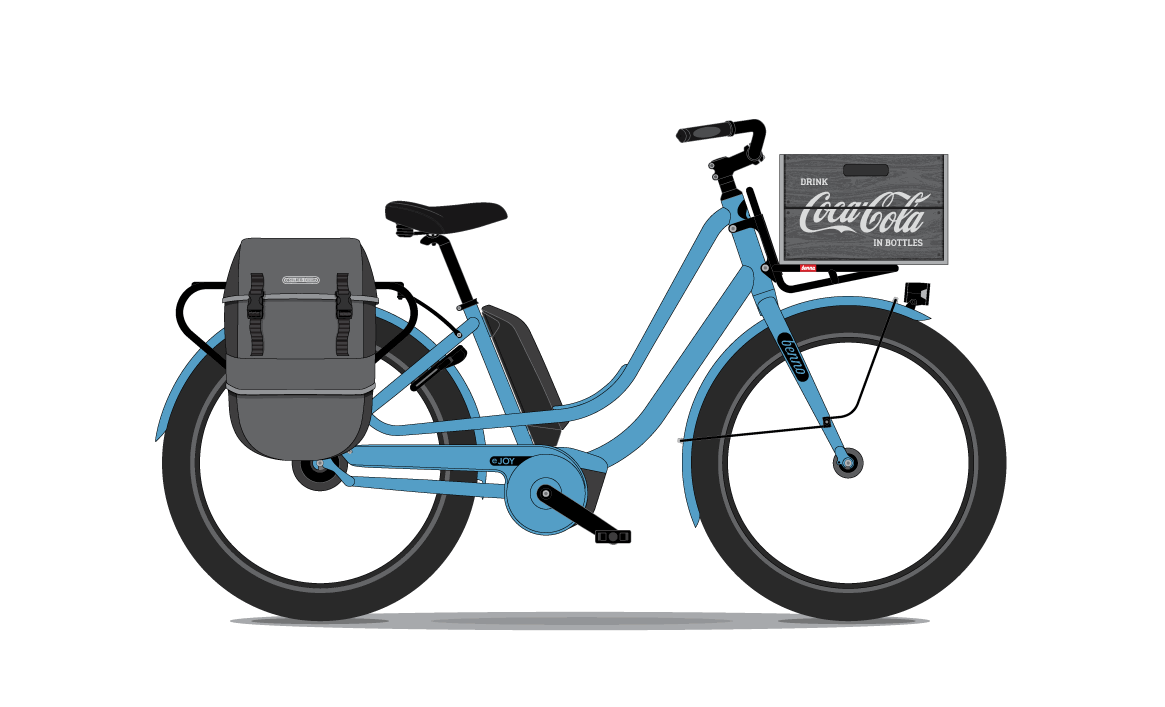

Attach your own crate to our Sport Front Tray.
Room for pannier bags behind a child seat.
Optional front tray bag – fits two grocery bags.

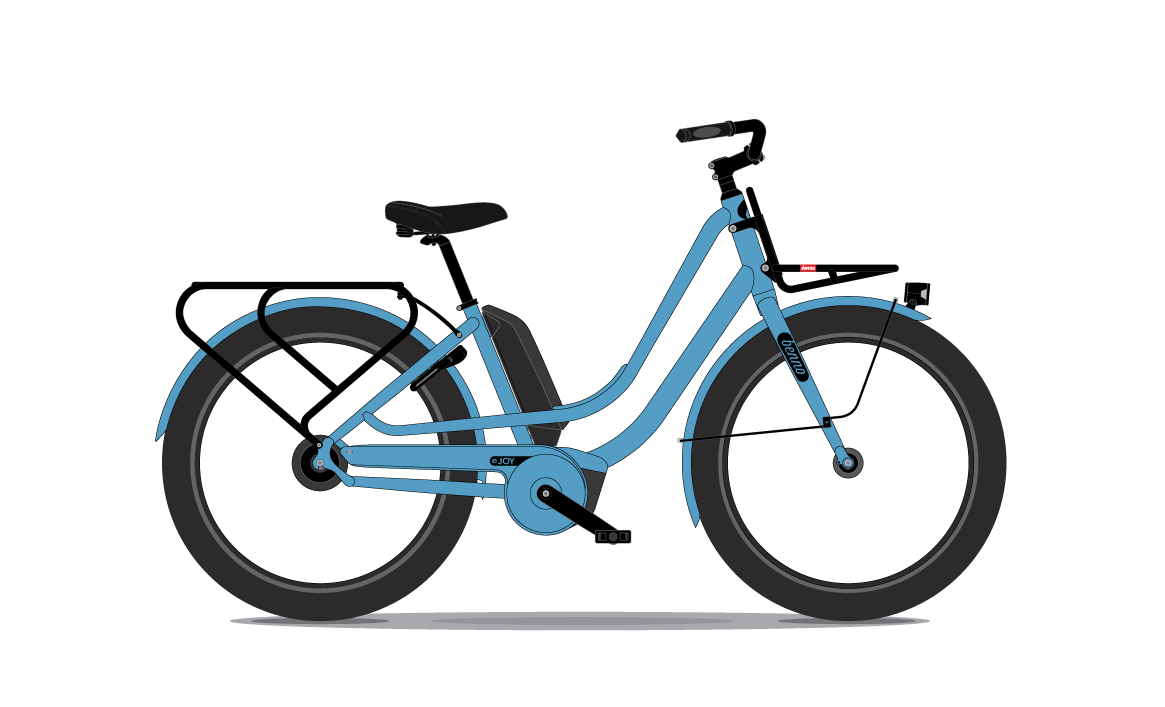

Five secure frame-mounted front tray options.
Works great with seatpost mounted surfboard racks

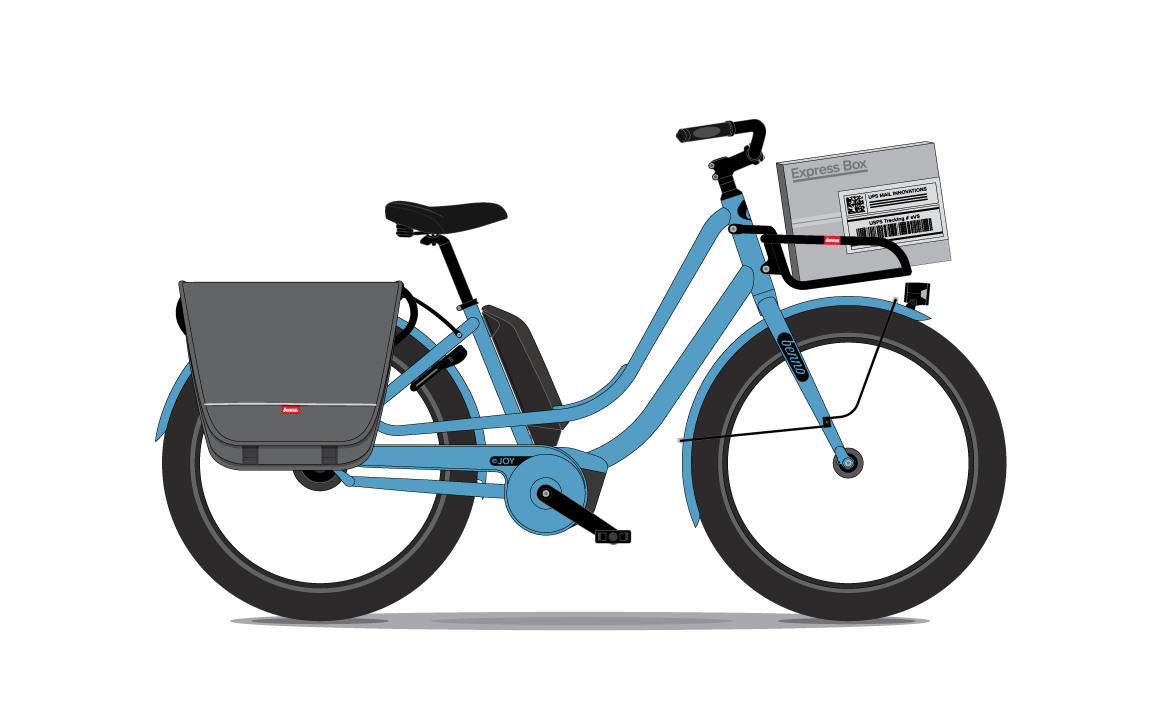

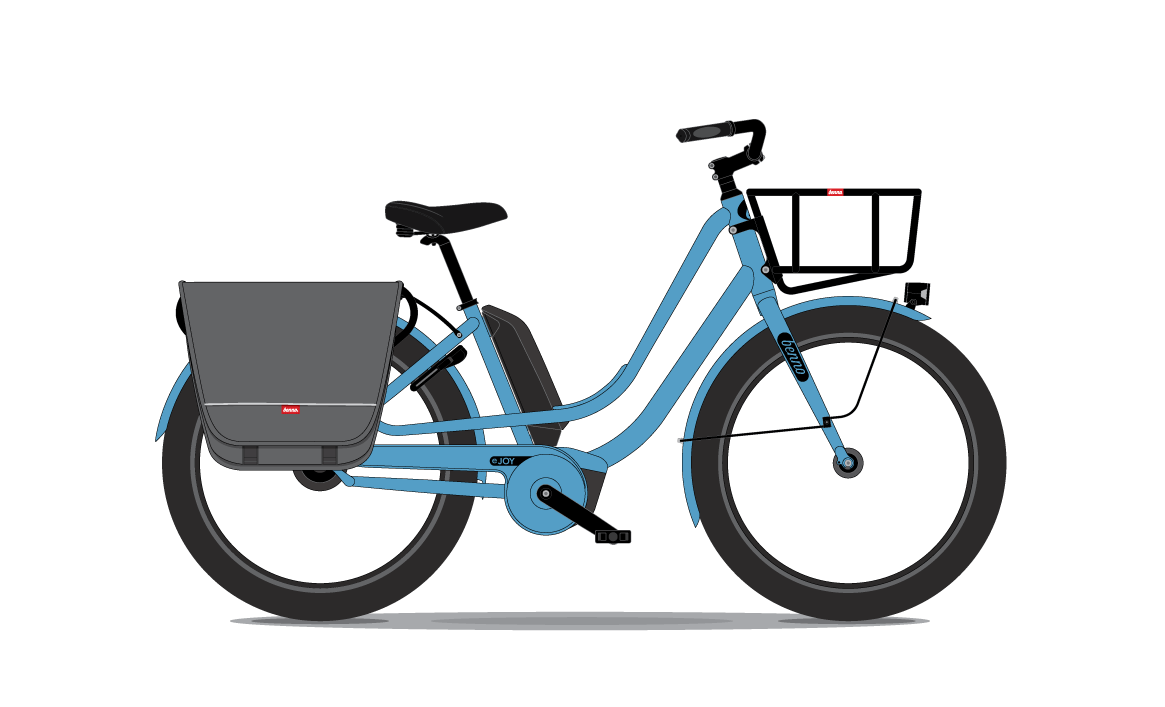

Fits City Panniers and most aftermarket rack accessories.
benno ejoy
Passenger Requirements Cargo Options Recommended * Third Party Product
FAMILY A
ACCESSORIES
1x Thule Yepp Maxi Seat*
1x Yepp EasyFit Baby Seat Adapter (Needed for EasyFit only)
2x Ortlieb Bag* 1x Utility Front Tray 1x Utility Front Tray Bag
FAMILY B
ACCESSORIES
1x Thule Yepp Maxi Seat* 2x Ortlieb Bag*
1x Yepp EasyFit Baby Seat Adapter 1x City Front Basket
(Needed for EasyFit only)
1x Trailer*
EJOY FULL SPECIFICATIONS
EJOY 5I – PERFORMANCE | EJOY 10D – PERFORMANCE SPORT (USA/NZ ONLY) | EJOY 10D – PERFORMANCE | |
---|---|---|---|
Motor | Bosch Performance 250W, 65Nm, GEN 3 | Bosch Performance Sport 250W, 65Nm, GEN 3 | Bosch Performance 250W, 65Nm, GEN 3 |
Assisted Speed | USA/CAN 20mph, EU 25km/h | USA 28mph, NZ 45km/h | USA/CAN 20mph, EU 25km/h |
Range Single Battery | 400Wh Battery:Â 25-75mi (40-120km) 500Wh Battery:Â 30-85mi (50-135km) | 400Wh Battery:Â 25-70mi (40-110km) 500Wh Battery:Â 30-80mi (50-130km) | 400Wh Battery:Â 25-75mi (40-120km) 500Wh Battery:Â 30-85mi (50-135km) |
Battery | Bosch Powerpack 400Wh/500Wh Lithium-Ion | Bosch Powerpack 400Wh/500Wh Lithium-Ion | Bosch Powerpack 400Wh/500Wh Lithium-Ion |
Charger | Bosch Compact 2A (400Wh Battery), 4A (500Wh Battery) | Bosch Compact 2A (400Wh Battery), 4A (500Wh Battery) | Bosch Compact 2A (400Wh Battery), 4A (500Wh Battery) |
Charging Time | 2A (400Wh) 6.5h, 4A (500Wh) 4.5h | 2A (400Wh) 6.5h, 4A (500Wh) 4.5h | 2A (400Wh) 6.5h, 4A (500Wh) 4.5h |
Controller | Bosch Purion Display | ||
Headlight | Herrmans MR 8 E | ||
Tail Light | Herrmans H-TRACE E | ||
FRAMESET | |||
Frame | 6061 Aluminum Alloy with Front Tray Mounts | ||
Fork | Oversized CRMO Steel | ||
Seat Collar | Aluminum, Q/R, 31.8mm | ||
WHEELS | |||
Front Hub | Shimano HBM4050 | ||
Rear Hub | Shimano Nexus 5-Speed | Shimano FHM4050 | |
Rims | Aluminum, Double Wall, 36H | ||
Spokes | Stainless 14G | ||
Tires | Balloon Tires 26 x 2.35, Puncture Resistant, 60 TPI | ||
DRIVETRAIN | |||
Shifters | Shimano Nexus Revo 5-Speed | Shimano Deore | |
Front Derailluer | N/A | ||
Rear Derailleur | N/A | Shimano Deore | |
Speeds | 5-Speed | 10-Speed | |
Front Cog | 38T | ||
Chain | Taya e-OCTO-5S, 110 Links | Taya e-DECA-101, 122 Links | |
Cassette | Shimano Nexus, Single Sprocket 24T | Shimano 10-Speed, 11~36T | |
COMPONENTS | |||
Chainguard | Semi Enclosed, Aluminum | ||
Pedals | One Piece Aluminum, Non Slip TPE Threads | ||
Saddle | Benno Low Profile Comfort with Elastomer Springs | ||
Seatpost | Aluminum, Diameter 27.2mm, Length 350mm | ||
Handlebar | Aluminum, Width 640mm, Rise 70mm | ||
Grips | Benno Ergo Profile, Lock-On | ||
Stem | Aluminum, Threadless, Extension 60mm | ||
Headset | FSA Intergrated | ||
Fenders | Extruded Aluminum | ||
BRAKES | |||
Front Brake | Shimano Hydraulic Disk, Rotor 180mm | ||
Rear Brakes | Shimano Hydraulic Disk, Rotor 160mm | ||
Brake Levers | Shimano | ||
ETILITY FEATURES | |||
Rack | eJoy Rear Rack, 16mm Tubing, Aluminum, Max. Load 85lbs/40kg | ||
Front Tray | Compatible | ||
Baby Seat | Designed for Thule Yepp EasyFit (with Benno Adapter) and Other Compatible Rack Mount Child Seats (Single) | ||
Rail System | N/A | ||
Accessories | Fits Most Aftermarket Pannier Bags and Accessories | ||

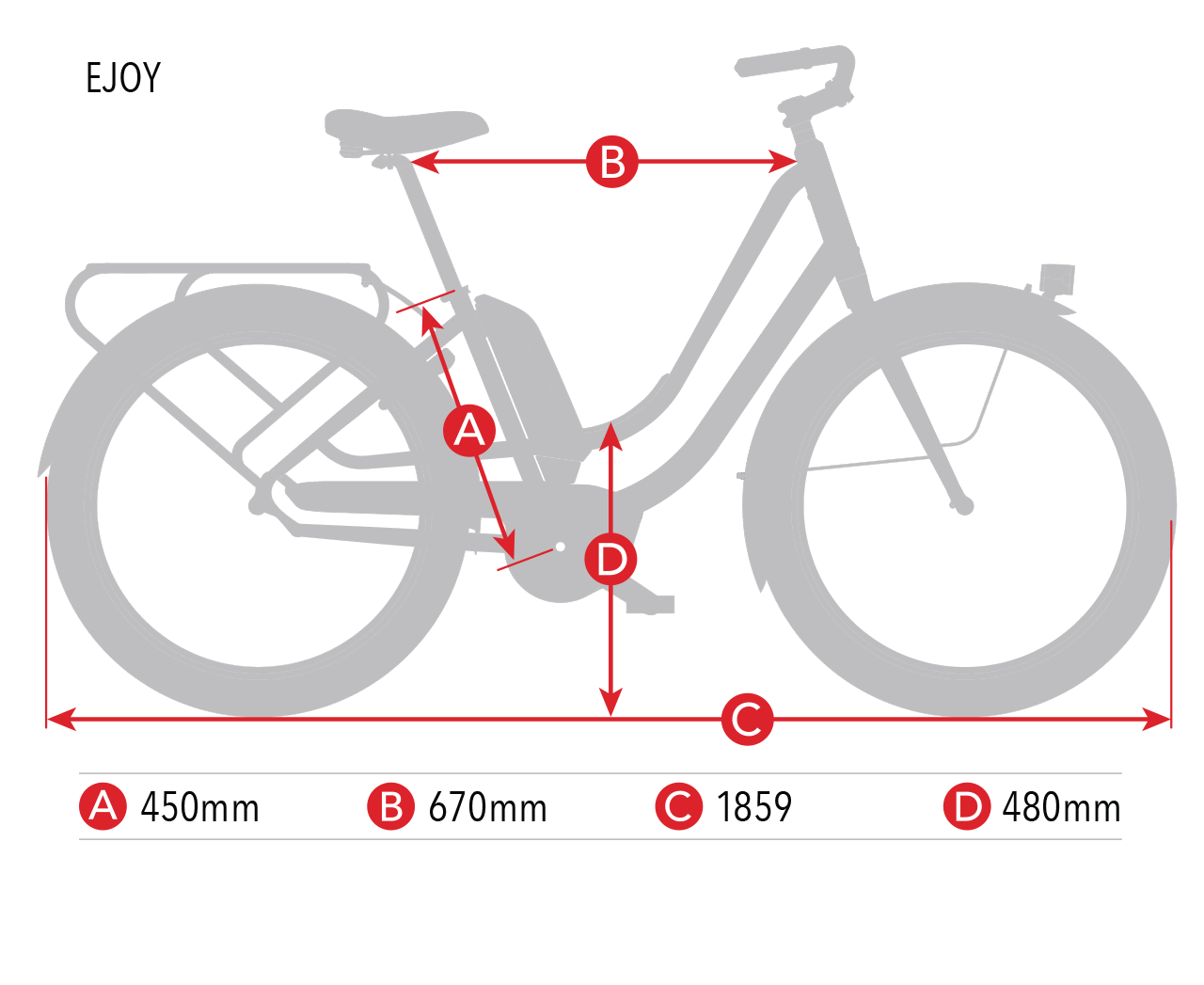

Frame Size | One Size – Fits Riders from 50 to 60 |
epowered by the Industry-Leading Bosch Drive System
Power/Torque: 250W/65Nm
Max Drive: 300%
Speed: USA/CAN 20mph, EU 25km/h
Battery: 400Wh/500Wh
Range 400Wh Battery: 25-75mi (40-120km)
Range 500Wh Battery: 30-85mi (50-135km)
Charger: 400Wh – 2A / 500Wh – 4A
Control Display: Bosch Purion On-Board Computer, 5 Riding Modes & Walk Assist
Power/Torque: 250W/65Nm
Max Drive: 300%
Speed: USA 28mph, NZ 45km/h
Battery: 400Wh/500Wh
Range 400Wh Battery: 25-70mi (40-110km)
Range 500Wh Battery: 30-80mi (50-130km)
Charger: 400Wh – 2A / 500Wh – 4A
Control Display: Bosch Purion On-Board Computer, 5 Riding Modes & Walk Assist
Be aware, when added together, the individual load ratings shown for the rider and cargo plus the actual weight of the bike will exceed max gross weight. Therefore, while you may maximize selected individual load ratings, the sum of all loads cannot exceed the max gross weight (rider+cargo+bike ≤ 400lb/180kg).
