The Haibike Skidplate
The Haibike SkidPlate is a motor cover made of fiber-reinforced plastic and protects the motor effectively from direct impacts when you ride over obstacles as well as from dirt and impacts from stones and other trail debris.
Haibike HPR 120S
Conquer steep ascents, “fly” over trails, explore new frontiers and extend them: An extra strong power package — Made in Germany — ensures the necessary power when you need it, with perfect modulation possible through the five custom assist modes. Together with the technology supplier TQ we developed a dynamic motor that is the most powerful mid motor on the market at the moment providing up to 120 Nm torque. Thanks to it’s patented transmission the motor offers extreme power and efficiency in a compact package.
Integrated Cable Routing
With the FLYON system, we were able to set new standards regarding cable routing. Both hardtail and full-suspension bikes have all of their electric, hydraulic and mechanical cables routed through the frame.The benefits to this are improved reliability and clean optics giving the FLYON models a clean and elegant silhouette.

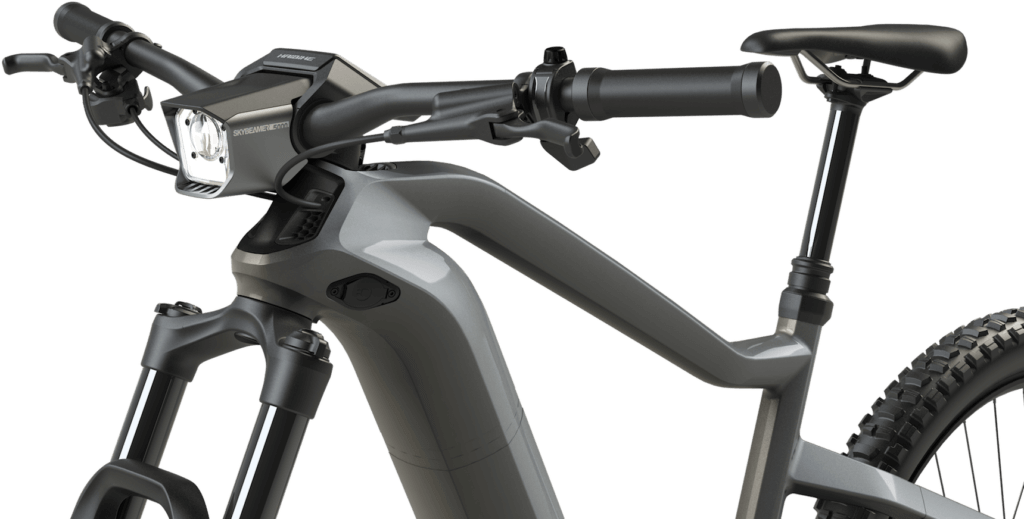

Why only master difficult trails and demanding routes by day? The Skybeamer is available in three versions with 150, 300 or 5.000 lumen meaning you can now safely stay out riding after dark! Parking your bike for the short and dark days during the winter months will now be a thing of the past thanks to the powerful headlight. With the Skybeamer 5000 we developed an independent system with daylight, which provides a classic low beam as well as a high beam light with over 5.000 lumen. The light can be operated manually via remote or fully automatically via a brightness sensor in the display.

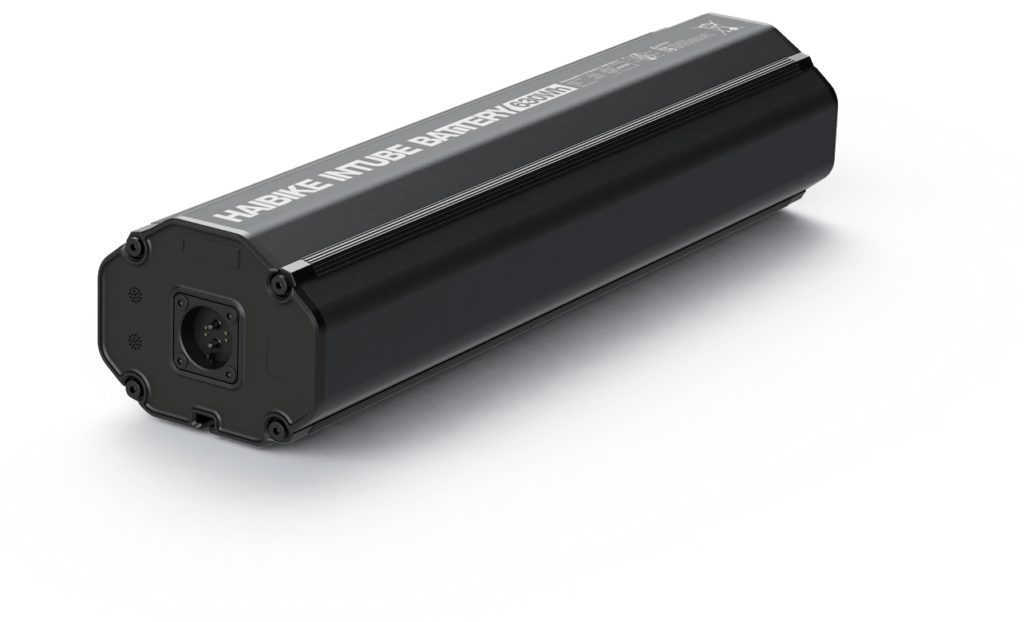

Haibike Intube Battery 630Wh
Together with our technology partner BMZ we developed a 48 Volt battery with an extremely high energy density and 630 Wh capacity. On the inside, the battery connects via magnet to the system inside the frame and can be secured against theft by a lock developed in collaboration with ABUS. The battery level can be checked via a touch sensor. The waterproof battery can be charged via a 4 amp charger either directly through the bike, or separately when removed. For retrofitting, Haibike provides a quick charging function: a 10 amp charger, which brings an empty battery to 80% battery level within only 60 minutes.
Speed Sensor Disc
A newly developed speed sensor disc sends 18 signals per rotation of the wheel to the system and measures the speed 18 times more accurately than any other system available on the market. In this way, the system is able to react significantly faster and more dynamically to changing requirements and recognizes acceleration even at slow speeds, e. g. hill starts. The sensor itself is safely positioned out of the way of harm and integrated in the left frame dropout.
All-New Carbon Frame
We designed and engineered a completely new frame platform around the FLYON models, made of high-quality carbon and utilizing a strong and sturdy form language. The Haibike ePerformance system was designed with the goal of achieving a high level of integration through the development of a new, space-saving mounting system for the battery. The battery is inserted longitudinally into a closed profile down tube, which allows for a lighter and more stable construction.
TTL – Twin Tail Lights
With the Haibike Twin Tail Lights you can keep on riding even after the sun sets! Eight highly-efficient LEDs make the eBike easily visible also from the side.

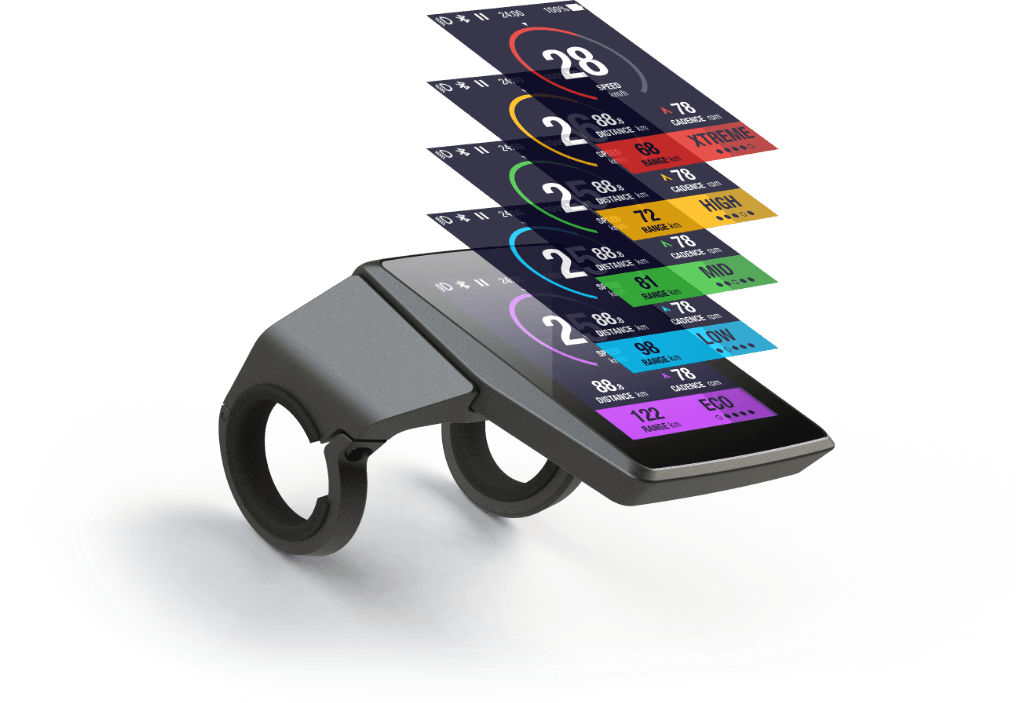

For the central interface between rider and system we developed a remote that can be operated intuitively, which follows the compact FLYON design language and provides perfect ergonomics: The mode switch is positioned below the handlebar and can be reached via thumb even during the ride. Not only the mode display serves as feedback, but also a clearly visible LED strap on the remote which changes the color depending on the level of assistance.
