Riese & Muller Delite Electric Bike Sizing
|S||5'2" to 5'9"|
|M||5'6" to 6'4"|
|L||5'9" to 6'7"|
Riese & Muller Delite Mountain
Sporty Shimano Deore XT 11-speed derailleur gear with high degree of efficiency, hydraulic Shimano XT disc brakes, mountain bike tires with superb grip, Fox full air suspension.
**The model version shown may be different from your selected model. We will correct all the images once we have them. If you have questions feel free to contact us.
The Riese & Muller Delite Mountain is a full suspension electric bike, With the lightweight and efficient Shimano Deore XT 11-speed derailleur gear, you’ve always got the best support even on the steepest hills. After all, the proven shifting technology possesses a high degree of efficiency. The control technology with Fox full suspension and mountain bike tires with superb grip ensure more traction and riding pleasure.
Motor: The Riese & Muller Delite Mountain comes with Bosch Performance CX, 20 mph. The Bosch Motor riding sensation creates a unique electric Bike experience. It features three sensors, it measures pedaling power, cadence, and speed more than 1000 times per second. This enables the rider and the electric Bike to interact with each other organically.
Brakes: The Riese & Muller Delite Mountain is equipped with high quality Shimano Deore XT hydraulic disc brakes. It provides very reliable stopping power, these brakes are low-maintenance, and easy to control.
Top Speed: Like most electric bikes sold in the US, the Riese & Muller Delite Mountain has a top speed of 20 mph in keeping with federal law. For those looking to go faster, this bike is available in a 28 mph HS version.
Warranty: Riese & Muller supplies you a five-year warranty for breakage of the frame and rear swing arm (on Regular bikes: 10 years).
Accessories: This bike comes with the standard Busch & Muller front and Supernova tail light for safety, it also comes with a bell. Our team has a lot of experience outfitting bikes with additional accessories, so be sure to reach out to us if there’s anything you may need.
Riese & Muller Delite Mountain Options:
Ultra-modern Bosch lithium ion batteries with a 500 Wh energy reserve provide the power for our E-Bikes. The battery capacity of 1,000 Wh is achieved by means of their dual battery technology. This technology doubles the range by using a second battery, which, however, depends on numerous factors. The integrated range calculator provides more detailed information. The lifespan is 800 – 1,000 charging cycles.
ABUS Bordo Plus lock:
The ABUS Bordo Plus 90 cm folding lock features a ultra-secure articulated design. it weighs just 1,120 g and clicks shut simultaneously with the battery lock.
Delite Mountain carrier:
Even with our sportiest E-mountain bike, you’re not always out trying to exert yourself. Whether for tours, biking trips or shopping in town, the carrier can be more than just convenient. With its superlative stability and its suspension, the first-class riding characteristics of the Delite mountain are maintained even with a full load. And if you want to go on a sporty ride again, you can very easily remove the carrier at any time
|Frame height||S (49cm)||M (54cm)||L (56cm)|
|Top tube length [cm]||58||61||64|
|Head tube angle [°]||67||67||67|
|Seat tube angle [°]||73||73||73|
|Bottom bracket height [cm]||51||51||51|
|Top tube height [cm]||94||95||95|
|Stand-over height [“]||40.2||40.2||40.2|
|Chainstay length [cm]||50.5||50.5||50.5|
|Wheel size [”]||27.5||27.5||27.5|
|Head tube length [mm]||125||135||135|
|Front suspension travel [mm]||120||120||120|
|Effective rear suspension travel [mm]||100||100||100|
|Gear ratio [m]||2.05-7.84||2.05-7.84||2.05-7.84|
|Gross vehicle weight rating [lbs]||308.6||308.6||308.6|
|Weight rating: Luggage rack [lbs]||44||44||44|
|Weight rating: Handlebar bag/basket [lbs]||6.6||6.6||6.6|
|Trailer compatibility: Single wheel/single attachment point||No||No||No|
|Trailer compatibility: Two wheel/single attachment point||Yes||Yes||Yes|
|Compatibility: Bike-Trailer (through hub/quick release attachment)||Yes||Yes||Yes|
Motor: The highest-torque Bosch drive guarantees maximum riding fun – even up hills. Its enormous performance coupled with sensitive responsiveness produce a completely new riding experience off the beaten track. The maximum torque is 75 Nm, with pedal assistance of as much as 300% – even at high speeds. With “Direct Flow”, you have a powerful push on the back wheel from speeds of just 20 rpm. Whether it be uphill or on the flat, this acceleration will inspire you.
Battery: Bosch PowerPack 500 Performance, 36 V, 13,4 Ah/500Wh – The most powerful PowerPack available from Bosch. Ultra-modern Bosch lithium ion batteries with 500 Wh energy reserve provide the power for our E-Bikes. The more Watt hours the battery has, the wider its range. This also depends on numerous other factors, such as the pedal assistance level set, the pace, the outside temperature or the inclination of the route. The range computer on the display provides more detailed information. When it’s stop-and-go in the city, the range is shorter than with a constant journey over a longer distance – comparable with the fuel consumption of a car. If you find while you’re on a ride that your battery’s residual power is not going to be enough to complete your journey, you can reduce the degree of assistance and therefore still reach your destination comfortably.
The lifespan is 800 – 1,000 charging cycles. Thanks to the short charging times, the battery can be significantly topped up during a lunch break, for example. A complete charge takes just 4.5 hours.
Control Technology: Full suspension, Fox 34 FLOAT 100 mm CTD Remote air suspension fork / Fox FLOAT CTD Remote air-sprung element – Only an E-Bike with true full suspension keeps ground contact on poor roads – and keeps you in full control. The active rear wheel swing arm, optimized front wheel suspension and co-sprung luggage carrier form the core of the Control Technology. They ensure better road holding and safety at high speeds and in tricky situations. Vibrations and hard knocks like those experienced on cobbles or curb are simply smoothed out. Your luggage is also protected by the frame-mounted, sprung luggage carrier.
Light: Always ride with excellent road illumination thanks to the IQ-X headlamps from Busch & Müller. Only daylight is brighter than their exceptional brightness of over 100 lux. With its very wide-sweeping and homogeneous large-area illumination of the street, you won’t miss a thing. They are operated via the Bosch display, while the energy is supplied via the battery. The Tail Light from Supernova makes you very easy to see from the rear. At the same time, it is hardly noticeable and very discreetly mounted on the rear disk brake.

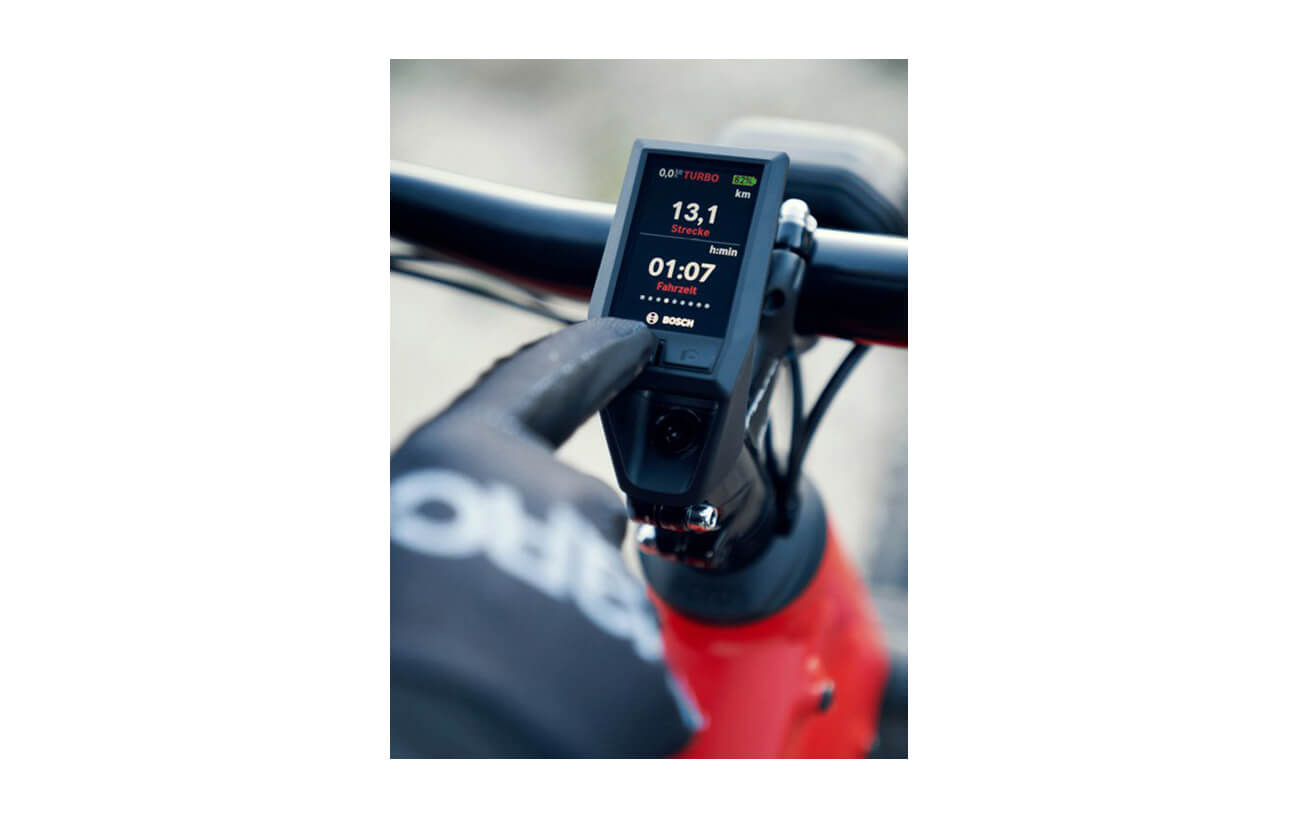

Display: The variable mode Bosch Intuvia LCD display has two main functions; to allow the rider to control drive parameters, and to display system information, including distance, time and speed. The control pad allows you to access all the computer and drive functions remotely, leaving your hands on the bar to maintain safety and security. To change motor settings while riding, simply push the large, glove friendly keys on the handlebar control pad. This ensures safety and stability, while still allowing you to control the motor for optimal performance.
Functions at a Glance:
- – Five user-selectable power modes to choose from (Eco, Tour, Sport, Turbo & OFF)
- – Speed: Current, average, and top
- – Trip distance and total
- – Clock and riding timer
- – Current motor performance
- – Remaining Range based on current use
- – Off-Board Use: All functions can still be accessed even when the control panel is removed
- – USB port to connect to your GPS, phone or MP3-Player
- – Motor Assistance of up to 4mph when guiding the bike on foot- WALK MODE
- – High precision distance measurement, even after a wheel change
1000 Wh DualBattery: Ultra-modern Bosch lithium ion batteries with a 500 Wh energy reserve provide the power for our E-Bikes. The battery capacity of 1,000 Wh is achieved by means of their dual battery technology. This technology doubles the range by using a second battery, which, however, depends on numerous factors. The integrated range calculator provides more detailed information. The lifespan is 800 – 1,000 charging cycles.
ABUS Bordo Plus lock: The ABUS Bordo Plus 90 cm folding lock features a ultra-secure articulated design. it weighs just 1,120 g and clicks shut simultaneously with the battery lock.
Delite Mountain carrier: Even with our sportiest E-mountain bike, you’re not always out trying to exert yourself. Whether for tours, biking trips or shopping in town, the carrier can be more than just convenient. With its superlative stability and its suspension, the first-class riding characteristics of the Delite mountain are maintained even with a full load. And if you want to go on a sporty ride again, you can very easily remove the carrier at any time
Riese & Muller Delite Electric Bike Sizing
|S||5'2" to 5'9"|
|M||5'6" to 6'4"|
|L||5'9" to 6'7"|
Fox Float 34 Performance Boost
Fox Float 34 Performance
Acros AZX-220, tapered, block lock
TranzX, 40,0 mm, QR, TranzX, 40,0 mm, QR
Schwalbe Nobby Nic 70-584
Alex MD40, 27,5″
Sapim Leader 2,0 mm, inox
|Front and Rear hubs||
Novatec Boost, QR
Bosch PowerPack 500 Performance, 36 V, 13,4 Ah/500Wh
Bosch Performance CX, 20 mp/h
FSA/Riese & Müller, 170 mm
Shimano SLX 11-speed, 11-42
Ergon SMC4-L Gel
VP-196 MTB, Alu
Shimano SLX, 11-speed
FSA Afterburner, 31,8 mm
FSA Afterburner, 90 mm, 6°
Shimano Deore XT, disc brake
Busch & Müller Lumotec IQ-X
Supernova E3 E-Bike Tail Light 2
Riese & Müller
Riese & Muller uses a modern Just in Time inventory strategy. Every bike is built to order in their Germany factory.
We have worked with R&M and several logistics partners to offer our customers several ordering options.
Once a month their will be a container shipped via Sea Freight. There will also be an option to have bikes shipped individually to our shop for $200 for standard bikes and $300 with cargo bikes.
If you’d like a bike shipped to your home it will have to go to our shop first for us to fully build and test the bike. Please select freight when checking out.
If you have any questions about this process please feel free to contact us.
